- Supports 6th Generation Intel© Core™ Processor
- Dual Channel DDR4, 4 DIMMs
- 2-Way Graphics Support with Exclusive Ultra Durable Metal Shielding over the PCIe Slots
- Dual PCIe Gen3 x4 M.2 Connectors with up to 32Gb/s Data Transfer (PCIe & SATA SSD support)
- 2 SATA Express Connectors for up to 16Gb/s Data Transfer
- 115dB SNR HD Audio with Built-in Rear Audio Amplifier
- Killer™ E2200 Gaming Networks
- High Quality Audio Capacitors and Audio Noise Guard with Ambient LED Trace Path Lighting
- USB DAC-UP ports
- APP Center Including EasyTune™ and Cloud Station™ Utilities
- GIGABYTE UEFI DualBIOS™ Technology

Realtek ALC1150 115dB SNR HD Audio

The ALC1150 is a high-performance multi-channel High Definition Audio Codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.

The ALC1150 provides ten DAC channels that simultaneously support 7.1-channel sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. Two stereo ADCs are integrated and can support a microphone array with Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technologies. The ALC1150 incorporates Realtek proprietary converter technology to achieve Front differential output 115dB Signal-to-Noise ratio (SNR) playback (DAC) quality and 104dB SNR recording (ADC) quality.

Additional Sound Blaster X-Fi MB3

GIGABYTE G1™ Gaming motherboards also include Sound Blaster X-Fi MB3 software suite. Sound Blaster X-Fi MB3 software suite is a powerful audio platform offering premium audio quality, effects and features for gamers. It features SBX Pro Studio™ suite of technologies, which is designed to give you the fullest audio experience.

GIGABYTE Exclusive : Upgradable OP-AMP

Customizable

- Users can choose audio quality based on individual listening preferences.
- Wide availability of additional OP-AMPs.

Low Cost way to dramatically improve audio quality

- Improve audio dynamics and overall sound-quality with little cost.
- No need for expensive speakers or high-end audio equipment.

Exclusive onboard 'Gain Boost' selector switches

- Select either standard 2.5x or high-amplification 6x mode.
- 6x mode is ideal for high impedance speakers and headphones.

High End Audio Capacitors

GIGABYTE G1™ Gaming motherboards use high end, Japanese branded Nichicon audio capacitors. These professional audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

Clean, low-noise power for your Digital-to-Analog Audio converter

GIGABYTE USB DAC-UP provides clean, noise-free power delivery to your Digital-to-Analog Converter. DACs can be sensitive to fluctuations in power from the other USB ports, which is why GIGABYTE USB DAC-UP takes advantage of an isolated power source that minimizes potential fluctuations and ensures the best audio experience possible.

2-Way CrossFire™ Multi-Graphics

Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

Killer™ E2200 Gaming Network

GIGABYTE G1™ Gaming motherboards feature the Killer™ E2200 from Qualcomm Atheros, a high-performance, adaptive gigabit Ethernet controller that offers better online gaming and online media performance compared to standard solutions.

Industry Leading Ultra Durable™ PCIe Metal Shielding

The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

Dual PCIe Gen3 x4 M.2

With two PCIe Gen3 x4 M.2 connectors onboard, GIGABYTE brings to the user PCI-Express connectivity for SSD devices. Delivering up to 32 Gb/s data transfer speed per connector, the dual M.2 provides an ideal storage solution as it also supports RAID modes.

Next Generation SATA Express

SATA Express combines the benefits of PCI Express and SATA to provide much higher bandwidth, featuring data transfer rates of up to 16Gb/s.

Ambient LED

GIGABYTE motherboards features LED lighting for the audio guard light path, providing a cool, custom look to your rig. These lights are now programmable, so you can have them beat to the rhythm of the music you are listening to, or pulse at a soothing pace to create a great atmosphere to enhance the environment of your game, movie or music.

15 Gold Plated CPU Socket Design

GIGABYTE motherboards come equipped with a 15 micron thick gold plated CPU socket*, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins or bad contacts.

All New GIGABYTE™ App Center Including EasyTune™, Cloud Station™ Utilities and More…

GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE apps installed on your system.

Easy Tune™

Get the highest levels of performance from your PC with easy to use GIGABYTE overclocking features.

Cloud Station™

GIGABYTE™ Cloud Station™ is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control your desktop PC via a wireless connection.

4K Ultra HD Support

4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel© HD Graphics via HDMI.

HDMI™ - The Next Generation Multimedia Interface

HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.

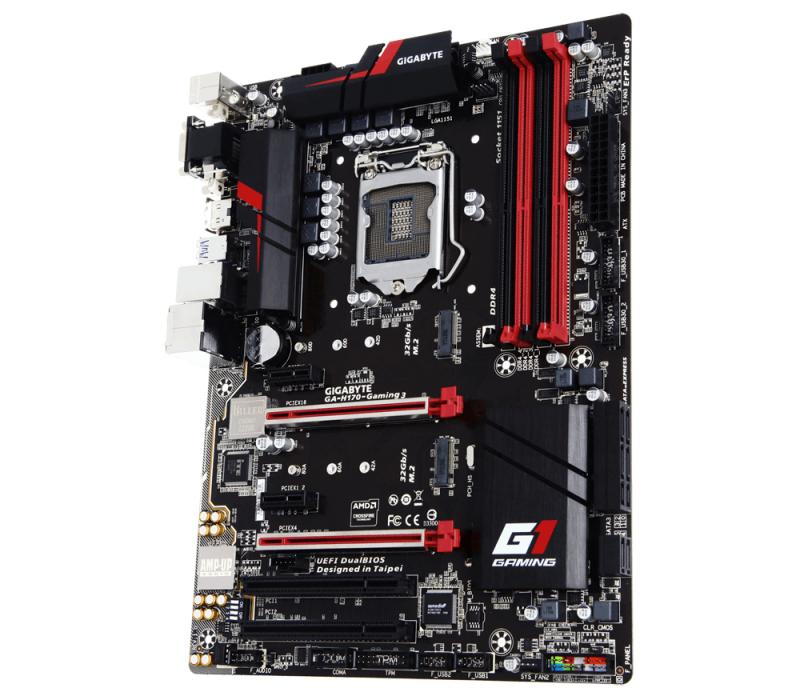

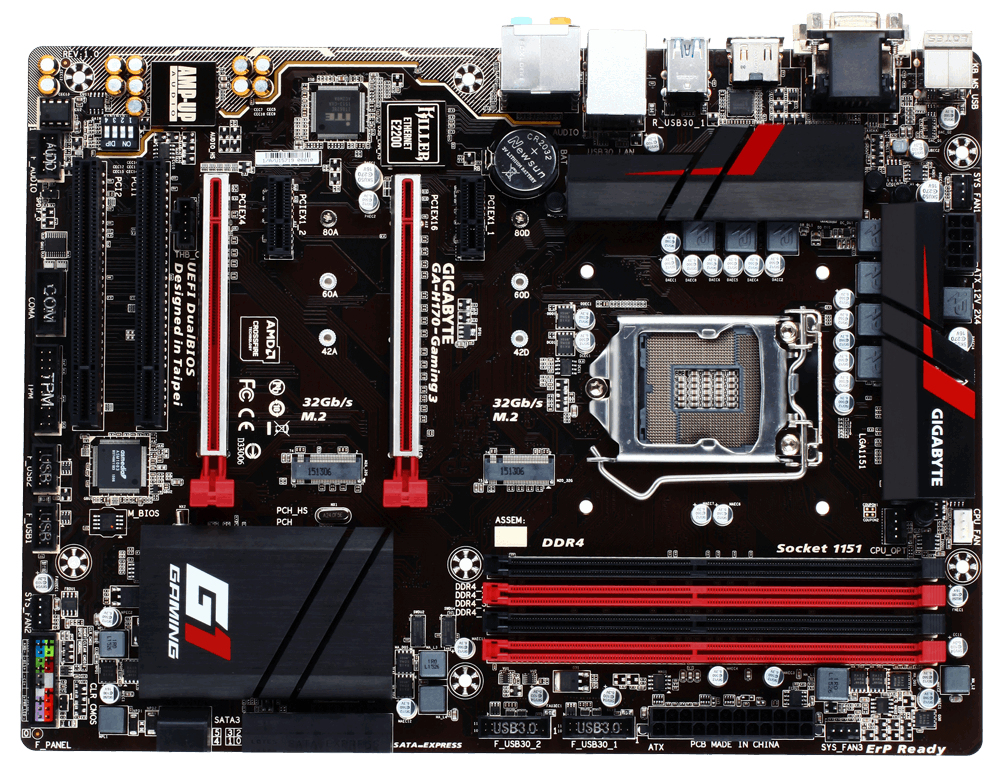

Gigabyte GA-H170-GAMING 3. tipos de memoria compatibles: DDR4-SDRAM, Tipo de ranuras de memoria: DIMM, Canales de memoria: Dual. Familia de procesador: Intel, Procesador compatible: Celeron, Core i3, Core i5, Core i7, Pentium, Socket de procesador: LGA1151. Interfaces de unidad de disco duro soportadas: SATA. Versión HDMI: 1.4, Conector USB: USB Type-A. Tipo de interfaz ethernet: Gigabit

Memoria
tipos de memoria compatibles:	DDR4-SDRAM
Tipo de ranuras de memoria:	DIMM
Canales de memoria:	Dual
ECC:	Si
No ECC:	Si
Velocidades de reloj de memoria soportadas:	2133 MHz
Capacidades del módulo de memoria soportadas:	4GB, 8GB, 16GB, 32GB
Capacidad de módulo UDIMM soportada:	8GB, 16GB
Memoria interna máxima:	64 GB
Ranuras de memoria:	2
Procesador
Familia de procesador:	Intel
Procesador compatible:	Celeron, Core i3, Core i5, Core i7, Pentium
Socket de procesador:	LGA1151
Máx. número de procesador SMP:	1
Interno I/O
USB 2.0, conectores:	2
Conectores USB 3.0 ( 3.1 Gen 1 ):	2
Interfaces de unidad de disco duro soportadas:	SATA
Número de conectores SATA:	8
S/PDIF, conector de salida:	Si
Conector de ventilador CPU:	Si
Conector de potencia ATX (24 pines):	Si
Conector de audio en panel frontal:	Si
Conector TPM:	Si
Número de conectores SATA III:	6
Cabecera de puerto serie:	1
Número de ranuras M.2 (M):	2
Número de conectores SATA exprés:	2
Cabeceras Thunderbolt:	1
Panel trasero Puertos de I/O (input/output)
Cantidad de puertos USB 2.0:	2
Cantidad de puertos tipo A USB 3.0 (3.1 Gen 1):	4
Ethernet LAN (RJ-45) cantidad de puertos:	1
Puerto de ratón PS/2:	1
Salidas para auriculares:	1
Micrófono, jack de entrada:	Si
Cantidad de puertos VGA (D-Sub):	1
Cantidad de puertos DVI-D:	1
Número de puertos HDMI:	1
Versión HDMI:	1.4
Conector USB:	USB Type-A
Red
Ethernet:	Si
Tipo de interfaz ethernet:	Gigabit
Desempeño
Componente para:	PC
Familia de componentes de tarjeta madre:	Intel
Circuito integrado de tarjeta madre:	Intel H170
Tarjeta madre, factor de forma:	ATX
Canales de salida de audio:	7.1
Sistema operativo Windows soportado:	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Gráficos
Soporte para proceso paralelo:	No
Adaptador gráfico:	HD Graphics
Chipset de Gráficos:	Intel
Máxima resolución:	4096 x 2160 Pixeles
Ranuras de expansión
Ranuras x1 PCI Express:	2
Ranuras x16 PCI Express:	1
Ranuras PCI:	2
BIOS
Tipos de BIOS:	UEFI AMI
BIOS, tamaño de memoria:	64 MB
Versión ACPI:	5.0
Jumper Clear CMOS:	Si
Características especiales del procesador
Intel Tecnología Smart Response:	Si
Peso y dimensiones
Ancho:	30.5 cm
Profundidad:	22.5 cm
Contenido del empaque
Cables incluidos:	SATA
Controladores incluidos:	Si
Guía de instalación rápida:	Si
