| General Information |
| Product Type : |
Dual Conversion Online UPS |
| Manufacturer Part Number : |
SU1500RTXL2UA |
| Manufacturer Website Address : |
www.tripplite.com |
| Marketing Information : |
1500VA online, double-conversion UPS system for critical server, network and telecommunications equipment. 2U rackmount form factor with an installed depth of only 19 in. Full-time sine wave 100, 110 or 120V +/-2% output. Uninterruptible Power Supply (UPS) actively converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. Operates continuously without using battery power during brownouts to 65V and overvoltages to 138V. NEMA 5-15P input plug and NEMA 5-15R output receptacles. Network-grade AC surge and noise suppression. Zero transfer time between AC and battery operation. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. |
| Manufacturer : |
Tripp Lite |
| Product Model : |
SU1500RTXL2Ua |
| Product Name : |

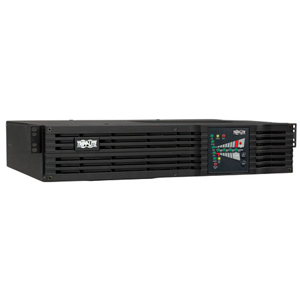

SmartOnline SU1500RTXL2Ua 1500VA Tower/Rack-mountable UPS |
| Product Line : |
SmartOnline |
|
| Technical Information |
| Backup/Run Time : |
5 Minute(s) 1200W Full-load
17 Minute(s) 600W Half-load |
| Battery Recharge Time : |
5 Hour(s) |
| Product Type : |
Dual Conversion Online UPS |
| Input Voltage : |
110V AC |
| Interfaces/Ports : |
USB
DB-9 Serial |
| Batteries : |
User-replaceable Hot-swappable |
| Dataline Protection : |
RJ-45 Tel/DSL/Ethernet |
| Filtering : |
EMI / RFI |
| Form Factor : |
2U Tower/Rack Mountable |
| Frequency : |
50Hz
60Hz |
| Load Capacity : |
1500VA/1200W |

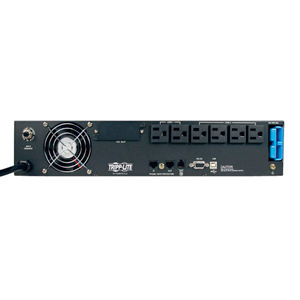

| Receptacles : |
6 x NEMA 5-15R |
| Plug/Connector Type : |
NEMA 5-15P |
|
| Power Description |
| Input Voltage : |
110V AC |
| Output Voltage : |
120V AC Nominal |
| Batteries : |
User-replaceable Hot-swappable |
| Current : |
12A Maximum Input Current |
| Filtering : |
EMI / RFI |
| Frequency : |
50Hz
60Hz |
| Load Capacity : |
1500VA/1200W |
| Plug/Connector Type : |
NEMA 5-15P |
| Input Voltage Range : |
100V AC to 120V AC |
|
| Management |
| Bypass Switch : |
Automatic |
| Emergency Power OFF : |
Yes |
| Network Manageability : |
SNMP Manageable Optional |
| Overload Protection : |
20A input breaker |
|
| Interfaces/Ports |
| Interfaces/Ports : |
USB
DB-9 Serial |
|
| Battery Information |
| Backup/Run Time : |
5 Minute(s) 1200W Full-load
17 Minute(s) 600W Half-load |
| Battery Recharge Time : |
5 Hour(s) |
| Output Voltage : |
120V AC Nominal |
| Batteries : |
User-replaceable Hot-swappable |
|
| Physical Characteristics |
| Dimensions : |
8.89cm Height x 44.45cm Width x 48.26cm Depth |
| Weight : |
20 kg |
| Form Factor : |
2U Tower/Rack Mountable |
|
| Miscellaneous |
| Additional Information : |
SmartOnline high-performance UPS system is ideal for critical voice, data, medical and industrial network applications
Maintains continuous operation through blackouts, voltage fluctuations and surges with zero transfer time
Removes harmonic distortion, fast electrical impulses, frequency variations and other hard to solve power problems not addressed by other UPS types |
| Package Contents : |
SmartOnline SU1500RTXL2Ua 1500VA Tower/Rack-mountable UPS
PowerAlert software CD-ROM and cabling
Mounting hardware for 4 post rack enclosures
Instruction manual with warranty information |
| Software Included : |
PowerAlert Software |
|
| Warranty |
| Standard Warranty : |
2 Year(s) |
|
