| General Information |

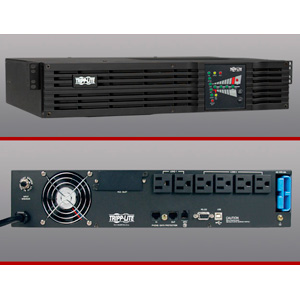

| Product Type : | Line-interactive UPS | | Manufacturer Part Number : | SMART5000RT3U | | Manufacturer Website Address : | www.tripplite.com | | Marketing Information : | Tripp Lite's line-interactive SMART5000RT3U UPS System protects server, networking or telecommunications equipment from blackouts, voltage fluctuations and surges in a compact tower/rackmount housing. In rack configuration, the power module and battery pack occupy only 3 rack spaces (3U) each. Large capacity 5000VA/4000W power module converts raw 208V AC input to fully regulated dual output 208/120 voltage for simultaneous protection of both high- and low-voltage equipment loads. True sine wave output at all times offers guaranteed compatibility with all equipment types. Includes 14 outlets, 8 of which can be individually reset via software interface to selectively reboot remote equipment or shed less critical loads to extend battery runtime for more critical equipment. Battery support can be extended indefinitely with additional external 3U rackmount battery packs. Includes slot for internal SNMP/web card, plus two DB9 and two USB enhanced monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. | | Manufacturer : | Tripp Lite | | Product Model : | SMART5000RT3U | | Product Name : | SMART5000RT3U 5000 VA Rack/Tower Line Interactive UPS | | Product Line : | SmartPro | | Brand Name : | Tripp Lite | |
| Technical Information |
| Switching Time : | 4 ms | | Receptacles : | 10 x NEMA 5-15R 2 x NEMA 5-20R 1 x NEMA L6-30R 1 x NEMA L14-30R | | Plug/Connector Type : | NEMA L6-30P | |
| Power Description |
| Input Voltage : | 220 V AC | | Output Voltage : | 120 V AC Single-phase 208 V AC Single-phase | | Filtering : | EMI / RFI | | Frequency : | 60 Hz | | Load Capacity : | 5 kVA/4 kW | | Waveform Type : | Sine Wave | | Input Voltage Range : | 208 V AC Single-phase | |
| Management |
| Emergency Power OFF : | Yes | | Network Management : | SNMP Manageable Optional | | Overload Protection : | Resettable circuit breaker (3 total, 15A each) | | Alarm : | On Battery Overload Low Battery | |
| Controls/Indicators |
| Status Indicators : | 5 front panel LEDs - Green 5 front panel LEDs - Green POWER LED, Green VOLTAGE CORRECTION LED, 3 color BATTERY CHARGE LED, 3 color OUTPUT LOAD LED, red BATTERY WARNING LED | |
| Interfaces/Ports |
| Interfaces/Ports : | 2 x DB-9 2 x USB | | Modular Slots : | 1 x Communications Slot | |
| Battery Information |
| Backup/Run Time : | 0.27 Hour 5 kW Full Load 0.63 Hour 2.50 kW Half Load | | Battery Life : | 26297.44 Hour to 52594.88 Hour | | Battery Recharge Time : | 4 Hour | | Batteries : | Sealed Lead Acid User-replaceable Hot-swappable | |
| Environmental Conditions |
| Humidity : | 0 to 95% Non-condensing Relative Humidity | | Temperature : | 0°C to 40°C Operating | |
| Physical Characteristics |
| Dimensions : | 89 mm Height x 438 mm Width x 425 mm Depth | | Weight (Approximate) : | 26.54 kg | | Form Factor : | 6U Rack-mountable | | Power Cord/Cable : | 3.05 m | |
| Miscellaneous |
| Additional Information : | Large 5000VA / 4000 watt output capacity with full time sine wave output offers guaranteed compatibility with all equipment types High power density 5kVA power module and battery pack occupy only 3 rack spaces (3U) each (UPS and battery pack use 6U when installed) 38 minutes half load runtime, expandable runtime with multiple external battery packs (part# BP48V60RT3U) Line interactive voltage regulation corrects severe brownouts and overvoltages without using battery power Dual voltage output is simultaneously compatible with both 208 and 120V equipment 14 total outlets (120V: 10 5-15R, 2 5-20R / 208v: 1 L6-30R, 1 L14-30R) Diagnostic LEDs provide visual indication of 17 separate performance conditions Included PowerAlert Software provides e-mail or pager notification of power problems and the simultaneous automatic unattended shutdown of multiple servers 4 built-in communications ports (2-DB9, 2-USB) for remote monitoring and unattended shutdown Slot for SNMP/web card SNMPWEBCARD and environmental sensor ENVIROSENSE for remote communications in large IP environments 8 customized load management receptacles can be individually powered off and back on again via software interface to reboot remote equipment or automatic "load shedding" of less critical loads to extend battery runtime for the most critical equipment Emergency Power Off (EPO) interface for emergency shutoff in large facilities Hot-swappable / user replaceable batteries allow on-site battery replacement through the front panel without powering off connected equipment or removing the UPS from the rack UPS battery set ships fully assembled and ready for connection to the power module, no time consuming, connection of individual internal batteries by user is necessary $250,000 Ultimate Lifetime Insurance (USA & Canada Only). No warranty cards required for coverage! 2 year manufacturers product warranty | | Package Contents : | SMART5000RT3U UPS SMART5000RT3U UPS System BP48V60RT3U battery pack PowerAlert Software and cabling Mounting hardware Instruction manual with warranty information | | Certifications & Standards : | UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications | | System Requirements : | TYPICAL APPLICATIONS: Ideal for centralized UPS protection of critical 208 and 120 volt equipment in server rooms, internetworking closets and telecommunications systems in rackmount or tower applications. Common applications include any mix of servers, workstations, hubs, routers, concentrators, IP telephony and traditional PBX switching system | |
| Warranty |
| Standard Warranty : | 2 Year | |
