| General Information |

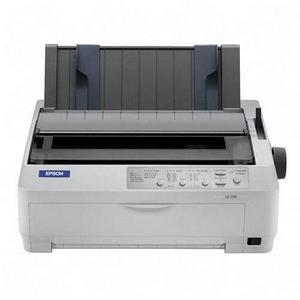

| Product Type : | Dot Matrix Printer | | Manufacturer Part Number : | C11C558001 | | Manufacturer Website Address : | www.epson.com | | Marketing Information : | Ideal for businesses that require high quality, multi-part forms printing, the reliable Epson LQ-590 printer offer extremely low operational costs compared to other printing technologies, as well as superior performance in comparison to other printers in its class. Designed for use in demanding print environments, this heavy-duty dot matrix printer handles critical business applications with precision and ease. And, it's backed by a three-year warranty that includes Epson's superior service and support. | | Manufacturer : | Epson Corporation | | Product Name : | LQ-590 Dot Matrix Printer | | Product Series : | LQ | | Brand Name : | Epson | |
| Technical Information |
| Number of Columns : | 80 | | Number of Pins : | 24-pin | | Print Direction : | Bi-directional | | Print Speed : | 529 cps High-speed Mode Draft Quality at 12 cpi 440 cps High-speed Mode Draft Quality at 10 cpi 330 cps Draft Quality at 10 cpi 110 cps Letter Quality at 10 cpi | | Maximum Mono Print Speed : | 529 cps | |
| Memory |
|
| Interfaces/Ports |
| Interfaces/Ports : | IEEE 1284 - Parallel USB | |
| Network & Communication |
| Network Technology : | Coaxial Fast Ethernet LocalTalk Twinax | |
| Controls/Indicators |
| Control Panel : | Font Pitch Pause Tear off Bin selection Line feed Form feed Load Eject Micro adjust Top-of-form adjustment Paper parking Default feature setting Panel lockout | |
| Media Types & Handling |
| Media Size : | Envelope No. 10Roll Paper Envelope No. 6 | | Paper Feed Rate : | 5 ips | | Media Type : | Continuous Form Single Sheet Envelope Label Cut Sheet Roll Paper | |
| Consumables |
| Print Yield : | 5 Million Characters Black | |
| Fonts & Emulation |
| Fonts : | 10 x Bitmap Font 11 x Barcode 4 x Scalable | | Language Emulation : | Epson ESC/P2 IBM PPDS | |
| Reliability |
| MTBF : | 20000 Hour | | Print Head Life : | 400 Million Characters Black | |
| Power Description |
| Input Voltage : | 110 V AC | | Frequency : | 50 Hz to 60 Hz | |
| Environmental Conditions |
| Sound Emission : | 52 dB(A) | |
| Physical Characteristics |
| Dimensions : | 160 mm Height x 414 mm Width x 351 mm Depth | | Weight : | 7.08 kg | |
| Miscellaneous |
| Additional Information : | Rated voltage: 120V Rated frequency range: 50 to 60 Hz Total print volume: 40 million lines (not including printhead) Resident Bitmapped Fonts: Epson Draft 10, 12, 15 cpi Epson Roman 10, 12, 15 cpi proportional Epson Sans Serif 10, 12, 15 cpi proportional Epson Courier 10, 12, 15 cpi Epson Prestige 10, 12, 15 cpi Epson Script 10 cpi Epson OCRB 10 cpi Epson Script C Proportional Epson Orator 10 cpi Epson Orator-S 10 cpi Bar Code Fonts: EAN-13 EAN-8 Interleaved 2 of 5 UPC-A UPC-E Code 39 Code 128 POSTNET Codabar (NW-7) Industrial 2 of 5 Matrix 2 of 5 Scalable Fonts: Epson Roman 10.5 pt; 8-32 pt every 2 pt Epson Sans Serif 10.5 pt; 8-32 pt every 2 pt Epson Roman T 10.5 pt; 8-32 pt every 2 pt Epson Sans Serif H 10.5 pt; 8-32 pt every 2 pt Character Sets: 96 ASCII characters 14 international character sets and 1 legal character set 128 user-defined characters Extended IBM style graphic characters 5 code pages Formatting: 32 horizontal tabs Line spacing in 1/6" or programmable (minimum 1/360" increments) Skip over perforations in lines Page length in lines or inches Paper Handling: Forms: - Continuous Multipart, original plus 4 carbonless copies
- Maximum Thickness: .018"
Width: - Single sheets: 3.9" to 10.1"
- Continuous: 4.0" to 10.0"
- Cut Sheet Feeder: 7.2" to 8.5"
Length: - Single sheets: 3.9" to 14.3"
- Continuous: 4.0" to 22.0"
- Cut-sheet Feeder: 10.1" to 14.0"
Paper Feed Speed: - 45 millisecond per 1/6"
- 5" per second continuous feed
Paper Path: - Manual Insertion: Front or top in, top out
- Cut sheet feeder: Top in, top out
- Tractor: Front, rear or bottom in, top out
Software Drivers: Windows 95 Windows 98 Windows 2000 Windows Me Windows XP Windows NT 4.0 | | Platform Support : | PC | | Country of Origin : | Indonesia | |
| Warranty |
| Parts Warranty/Labor : | 3 Year | | Standard Warranty : | 3 Year Limited | |
