| General Information |
| Product Type : |
Standby UPS |
| Manufacturer Part Number : |
INTERNET750U |
| Manufacturer Website Address : |
www.tripplite.com |
| Marketing Information : |

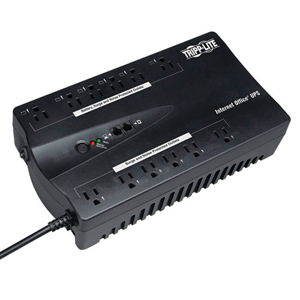

Tripp Lite's INTERNET750U standby UPS offers complete protection for PCs, workstations and other sensitive electronics in an attractive, ultra-compact, mountable housing. Prevents data loss and system downtime by providing battery-supported AC output during brownouts and blackouts. 12 widely spaced output receptacles accommodate large transformer plugs without blocking outlets. 6 outlets provide full battery support and surge suppression for computers, monitors and other vital system components. 6 additional surge suppression-only outlets are ideal for printers and other accessories not requiring battery support. Single-line telephone suppression jacks with line splitter protect up to two directly connected modems, fax machines, cordless phones or other peripherals sharing a standard dialup or DSL phone line connection. USB port with PowerAlert monitoring software and cabling enables a safe, unattended system shutdown. HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows, Mac OS X and Linux. Audible alarm and front panel LEDs offer status information regarding line and battery power operation. 750VA/450W power handling ability supports entry-level PCs for up to 35 min. during power failures. 2-year warranty; $100,000 connected equipment insurance (USA & Canada only). |
| Manufacturer : |
Tripp Lite |
| Product Name : |
Internet 750U UPS |
| Product Line : |
Internet |
|
| Technical Information |
| Backup/Run Time : |
5 Minute(s) 750VA Full-load
17 Minute(s) 375VA Half-load |
| Battery Life : |
3 Year(s) to 6 |
| Battery Recharge Time : |
4 Hour(s) |
| Product Type : |
Standby UPS |
| Input Voltage : |
110V AC |
| Interfaces/Ports : |
1 x USB |
| Audible Alarms : |
On Battery
Self-test Operation |
| Batteries : |
Sealed Lead-acid User-replaceable Hot-swappable |
| Color : |
Black |
| Dataline Protection : |
RJ-11 Phone/Fax/Internet/DSL |
| Filtering : |
EMI / RFI |
| Form Factor : |
Floor-mountable Ultra-compact Desk-mount |
| Frequency : |
60Hz |
| Status Indicators : |
2 LEDs indicate on/off and overload/check battery |
| Load Capacity : |
750VA/450W |
| Power Cord/Cable : |
2 m |
| Switching Time : |
4 ms |
| Waveform Type : |
Pulse-width Modulated Sine Wave |
| Receptacles : |
6 x NEMA 5-15R - Backup/Surge-protected
6 x NEMA 5-15R - Surge-protected |
| Plug/Connector Type : |
NEMA 5-15P |
|
| Power Description |
| Input Voltage : |
110V AC |
| Output Voltage : |
120V AC to 120V AC Single-phase |
| Batteries : |
Sealed Lead-acid User-replaceable Hot-swappable |
| Filtering : |
EMI / RFI |
| Frequency : |
60Hz |
| Load Capacity : |
750VA/450W |
| Power Cord/Cable : |
2 m |
| Surge Energy Rating : |
380J |
| Switching Time : |
4 ms |
| Waveform Type : |
Pulse-width Modulated Sine Wave |
| Plug/Connector Type : |
NEMA 5-15P |
| Input Voltage Range : |
120V AC to 120V AC Single-phase |
|
| Management |
| Audible Alarms : |
On Battery
Self-test Operation |
| Network Manageability : |
Not Applicable |
|
| Controls/Indicators |
| Audible Alarms : |
On Battery
Self-test Operation |
| Status Indicators : |
2 LEDs indicate on/off and overload/check battery |
|
| Interfaces/Ports |
| Interfaces/Ports : |
1 x USB |
|
| Battery Information |
| Backup/Run Time : |
5 Minute(s) 750VA Full-load
17 Minute(s) 375VA Half-load |
| Battery Life : |
3 Year(s) to 6 |
| Battery Recharge Time : |
4 Hour(s) |
| Output Voltage : |
120V AC to 120V AC Single-phase |
| Batteries : |
Sealed Lead-acid User-replaceable Hot-swappable |
|
| Environmental Conditions |
| Humidity : |
0 to 95% Non-condensing Relative Humidity |
| Temperature : |
0 ¦C to 40 ¦C Operating |
|
| Physical Characteristics |
| Dimensions : |
10.16cm Height x 30.48cm Width x 17.78cm Depth |
| Shipping Dimensions : |
13.97cm Height x 36.83cm Width x 24.76cm Depth |
| Shipping Weight : |
7.48 kg |
| Weight : |
7.03 kg |
| Color : |
Black |
| Form Factor : |
Floor-mountable Ultra-compact Desk-mount |
| Power Cord/Cable : |
2 m |
|
